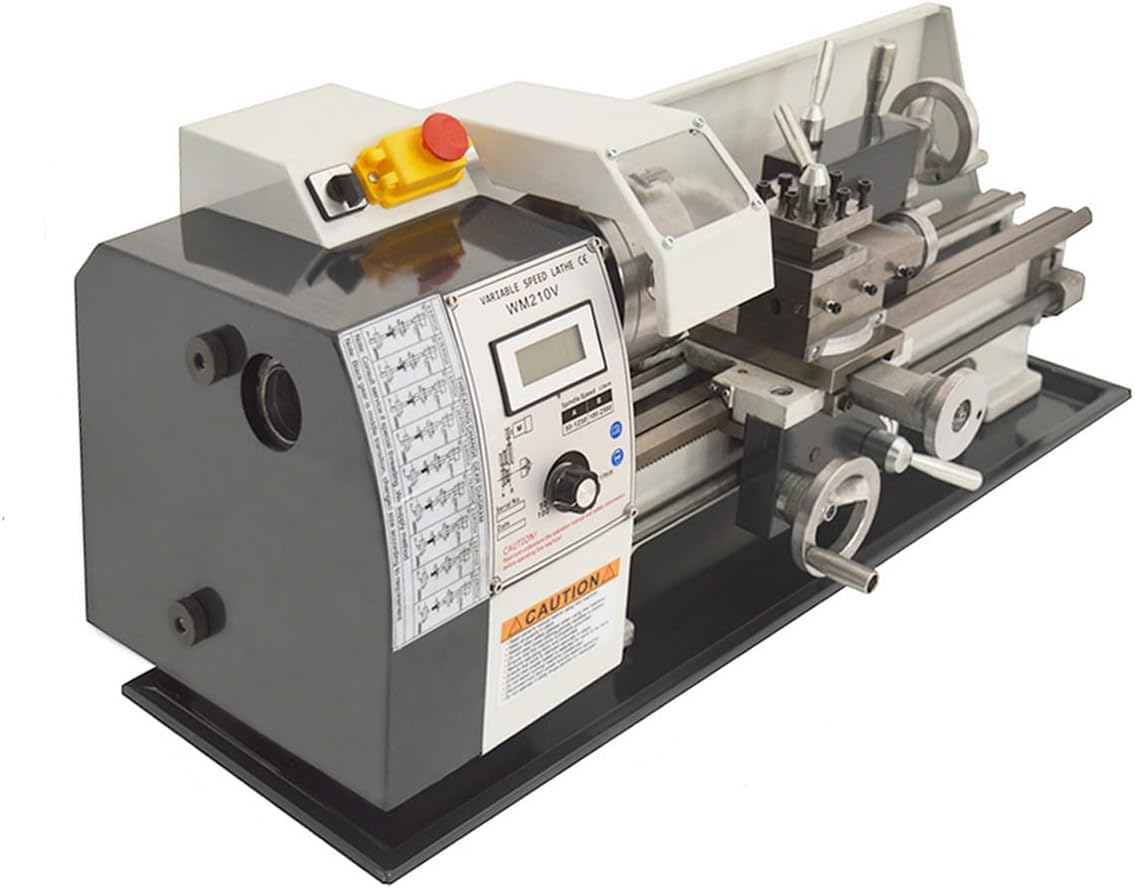

Precision 8X16" Metal Bench Lathe Variable Speed Inch Thread Lathe Metal Lathe Bench Lathe Milling Machine Metal Metalworking Lathe Miniature Lathe 110V
Product details
| Management number | 221715913 | Release Date | 2026/05/03 | List Price | $455.60 | Model Number | 221715913 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

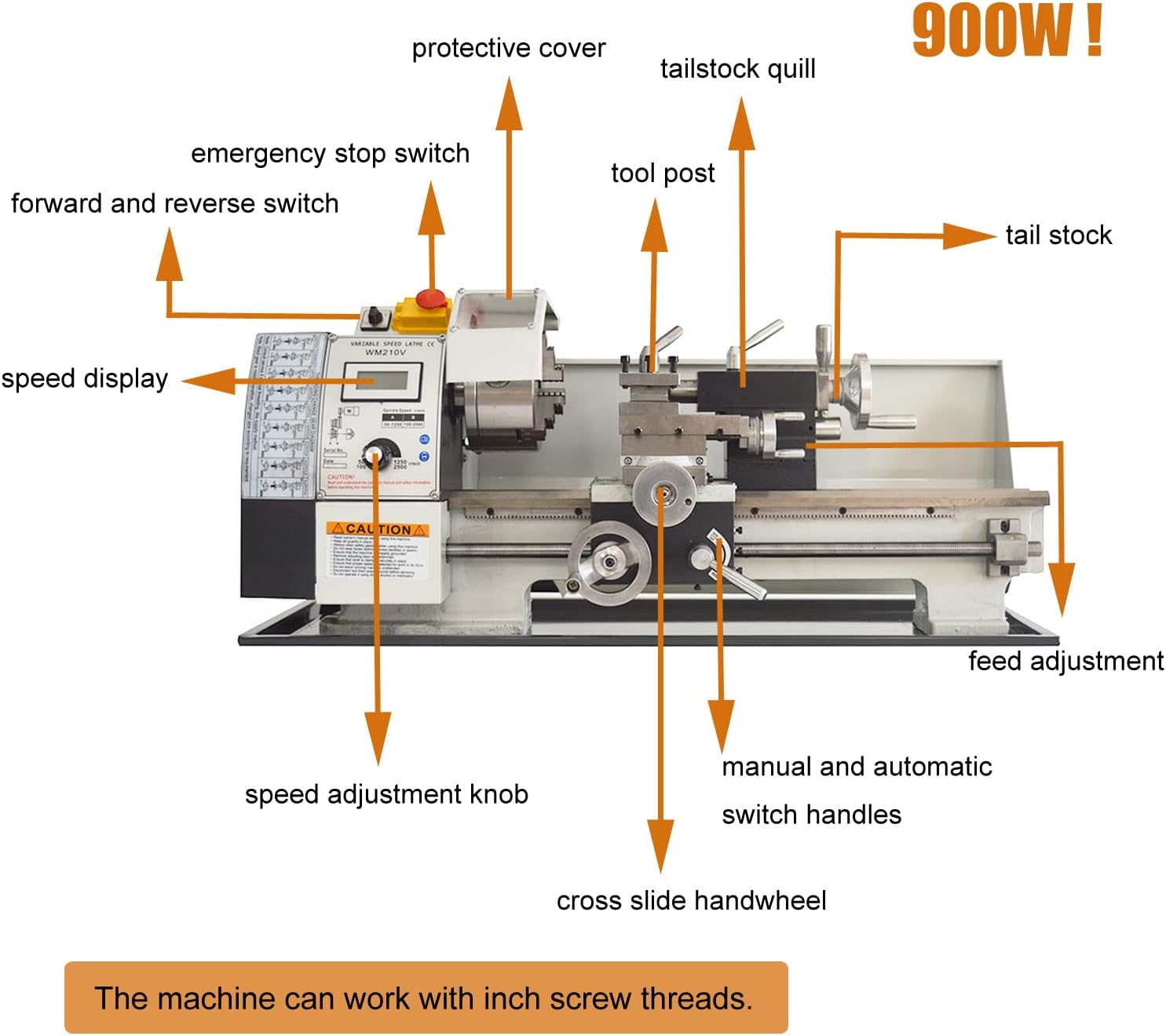

Model: WM210V Motor: 110V brushless motor Voltage: AC110V 50/60Hz Power: 900W Length of center: 15.7"/400mm Swing over bed: 8.3"/210mm Rotary diameter of tool rest: 5.51"/140mm Spindle bore: 1.50"/38mm Diameter of chuck: 4.92"/125mm Width of lathe bed: 3.94"/100mm Number of Spindle Speeds: Infinitely variable speeds Spindle taper: MT5 Knife rest labour: Horizontal four-station Spindle rotation speed: 50-2500rpm Range of metric threads: 0.5-3mm Range of Inch Threads(optional accessory ): 10-44T.P.I Precision of the spindle: 0.01mm Automatic feed range: 0.1mm-0.2mm Maximum stroke of tool rest plate: 2.16"（55mm） Maximum stroke of middle plate: 2.95"（75mm） Maximum stroke of bottom plate: 10.87"（276mm） Maximum stroke of tailstock sleeve: 2.36"（60mm） Tail frame taper: MT2 The machine can work with inch threads.
- DIGITAL DISPLAY: Digital display of rotation speed could make adjustment and operation more accurate, more convenient. Users could adjust rotation machine through the digital speed displays.
- QUALITY PERFORMANCE: High-precision three-jaw chucks with 125mm/4.92" clamping diameter are used to clamp square and round materials firmly. The adjustable 4-way tool post on the lathe allows users to easily change cutting tools.
- STABLE STRUCTURE:Spindle speed is divided into high and low two gears:50-1250rpm/m and 1250-2500rpm/m. Equipped with metal gear, machine has strong power and more accurate transmission.
- PRECISION DESIGN: Precise dialos are provided on the saddle handle, the tailstock handle and the movable center, allowing for more accurate and professional work. And there is MT2 taper in tailstock spindle for accurate operation.
- RANGE OF APPLICATION: The machine is used for processing the end face of rotary surfaces and rotating bodies. It can process turning end face and all kinds of commonly used metric thread, cone surface, ring groove and forming turning surface, etc.
| Size | 8x16" Inch thread |
|---|---|
| Material | Metal |
| Item Weight | 166.1 pounds |
| Part Number | ATL028033 |
| Manufacturer | BREVELTION |
| Package Dimensions | 35.83 x 20.28 x 18.31 inches |
